INTRODUCING DYNAMIC-VARIABLE PITCH

NEVER BEFORE SEEN CAM AND AIRCRAFT TECHNOLOGY.

Dynamic-Variable-Pitch

Bird wing dynamics

Background

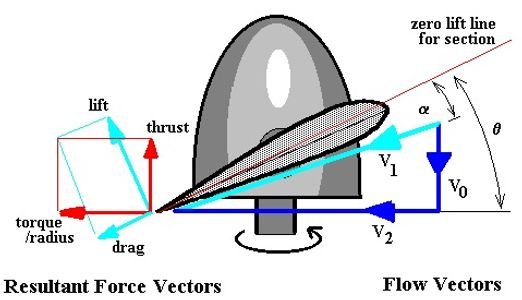

Our revolutionary cam technology is inspired by the characteristics of bird and insect flight. Until now airplanes and helicopters had to rely on standard variable pitch and cyclic pitch in order to manipulate propellers and rotors. DYNAMIC  VARIABLE PITCH  is an all new approach that enables a more free-form control. Thrust vectoring and the countering of dissymmetry of lift are two separate and unique features of this technology. Because of this, many new types of aircraft with speed and efficiency benefits over the state of the art are now possible.





THRUST VECTORING

Our thrust-vectoring technology removes the need for tilting of the fuselage or the rotor system in any of our VTOL aircraft.

This improvement to the current technology eliminates the complex transition process from vertical to forward flight while reducing the number of  lifting motors and bulky components inside the wing. Less weight and drag translate to more efficiency and higher speed capability compared to an SLT or tiltrotor aircraft.

Our quadcopters fly level in forward flight allowing us to replace the round rods with wings. The non-tilted fuselage makes for a smaller profile while the wings increase lift and further reduce the profile. All of this combined makes for a big increase in aerodynamic efficiency. The horizontal orientation of the rotors eliminate a phenomenon called  p-factor increasing lift and thrust efficiencies . For these reasons as well as others, our technology will make a quadcopter faster and more efficient.


Dissymetry-of-lift with a 50 mph forward speed. Rotor tips spinning at 450mph.

COUNTERING DISSYMMETRY-OF-LIFT

Countering dissymmetry of lift (DOL) in helicopters is another unique feature of our cam. DOL and retreating blade stall are major limiting factors in the top speed of a helicopter. Our unique cam design will address this aerodynamic limitation more effectively than a helicopter swashplate by holding a higher average pitch angle in the retreating blades and a lower average pitch angle in the  advancing blades. Data from our proof of concept prototype showed a significant improvement of 75%, with a 125% improvement projected in future testing

In Flight USA magazine features Blainjett on the cover of their April edition. 3-5-2019
